Question
How can I set up Ververica Platform in a multi-tenant Kubernetes environment and deploy Flink jobs to different Kubernetes namespaces?
Answer
Note: This applies to Ververica Platform 2.0 and later. Enterprise Editions only.
Without any configuration, Kubernetes uses the namespace default for every operation and so does Ververica Platform. In a multi-tenancy environment, however, you may want to run Flink jobs in dedicated namespaces for isolation reasons. This is how you create such a setup:
1) Create the Kubernetes namespaces you want to set up, e.g. devjobs, opsjobs
kubectl create namespace devjobs
kubectl create namespace opsjobs2) Create your values.yaml file with the following content
rbac:
additionalNamespaces:
- devjobs
- opsjobsNote: You can also add the above into your existing values.yaml which was used to setup Ververica Platform. If you already have rbac:additionalNamespaces specified, you simply append the additional namespaces there.
3) Now, use helm upgrade to grant Ververica Platform permissions in those namespaces
helm upgrade vvp ververica-platform-2.0.4.tgz --values values.yaml
4) Verify the granted permissions via the following commands
kubectl describe role vvp-ververica-platform --namespace devjobs

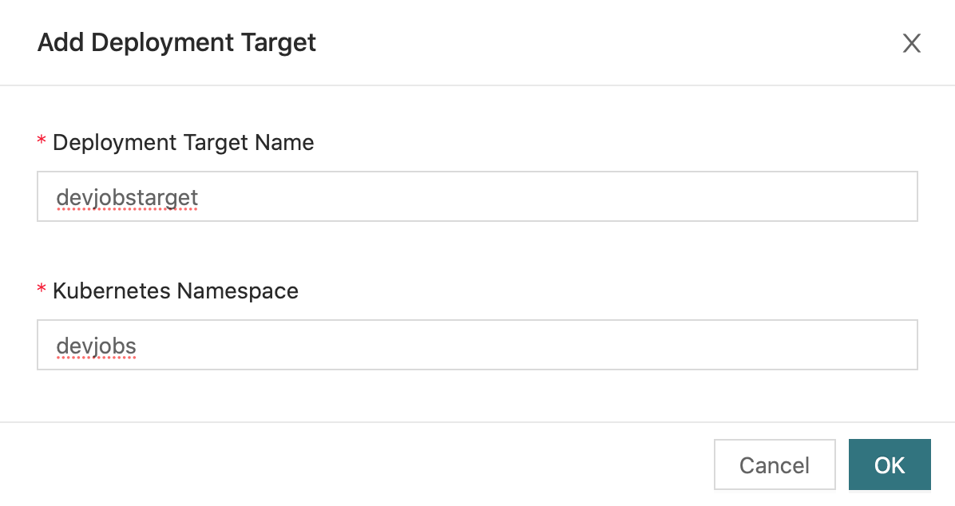

kubectl describe role vvp-ververica-platform --namespace opsjobs5) Now, in Ververica Platform's web UI, create a DeploymentTarget for each of the Kubernetes namespaces you created above. For the devjobs namespace, for example:

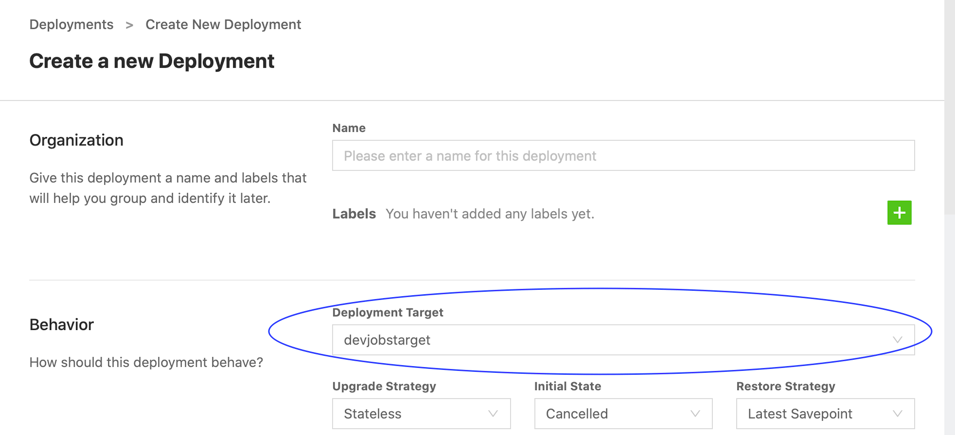

6) The created DeploymentTarget can then be used to create a Deployment:
Note: A DeploymentTarget is always scoped to a Ververica Platform namespace ( default by default; not to be mixed up with any existing Kubernetes namespace). Be sure to select the platform namespace you want to create the DeploymentTarget for. In a multi-tenant setup, you can create additional platform namespaces via Ververica Platform's web UI and then create an appropriate DeploymentTarget in each of them.
Important: When you run Flink Jobs in a namespace different from the one in which Ververica Platform pod runs, make sure the access from Ververica Platform pod to your jobmanager pod via port 8081 is allowed by the configured network policies, if any. If no network policy is configured in your cluster, the cross-namespace access is allowed by default.
